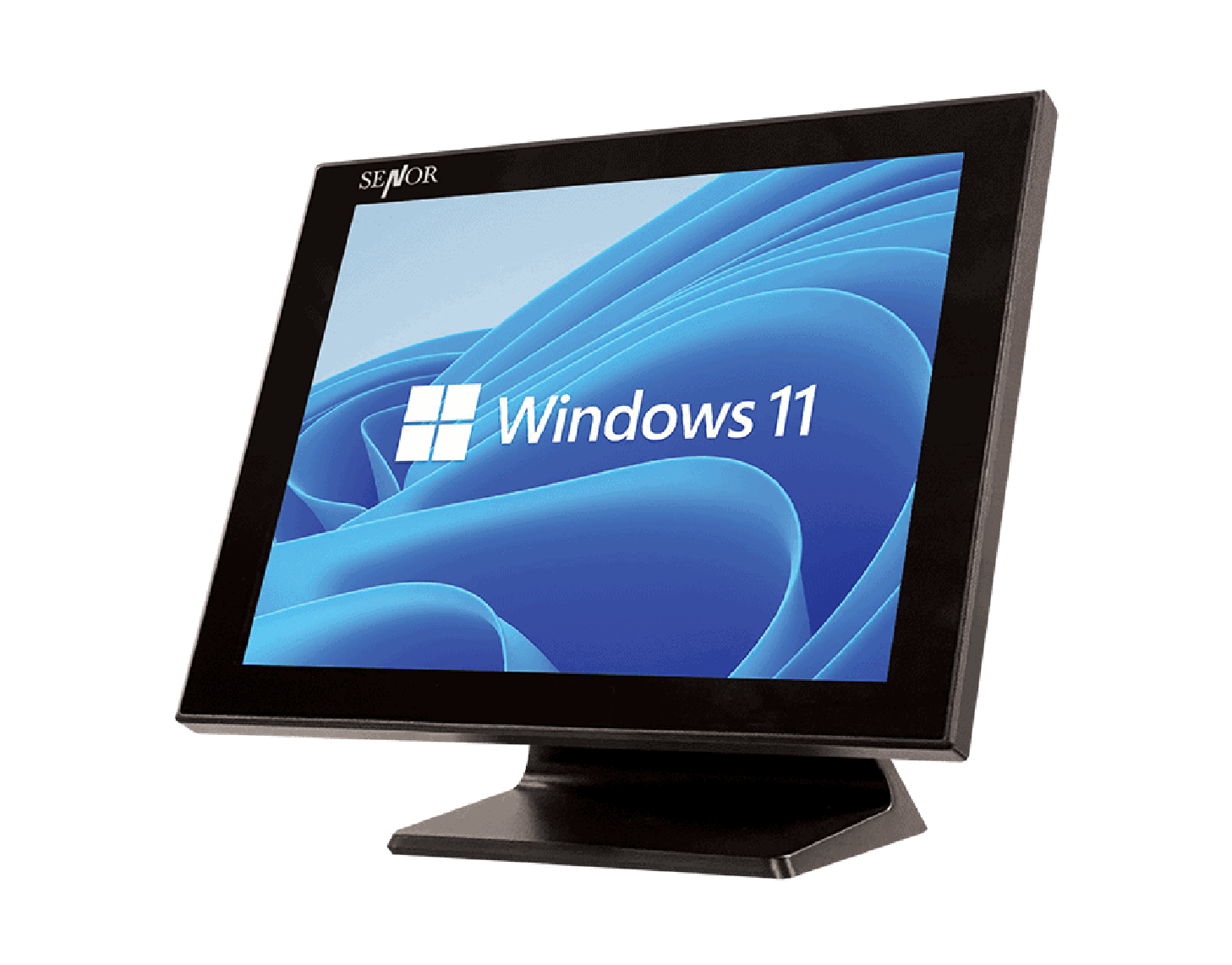

SENOR - KxPOS Series
Industrial POS Touch PC



The Senor K POS Series of fully featured, Industrial POS PC's are suitable for a variety of applications encompassing Point Of Sale, Workstation, Instrumentation and general use.

Features

  • Slim Die-cast Aluminium Sealed Chassis
  • Fanless and Ventless with IP66 rating
  • Multiple Intel Processor Options
  • DDR4 SODIMM Memory Socket
  • NVMe M.2 PCIe SSD Drive Socket
  • Choice of Operating System.
  • Multiple I/O Ports
  • 12 Month Warranty

Specifications

 K5POS J64K5POS N315K6POS N116K6POS N316K8POS N118K8POS N318
Physical Characteristics
Width
366mm
362mm
433mm
Height
302mm
291mm
301mm
Depth
159mm
Weight
6Kg
4Kg
8Kg
Mounting
Desk Stand
100mm VESA Mount Pattern
Chassis Material
Heat-dissipating solid aluminium die-cast casing with Nano-technology coating
Ingress Protection
IP66 - Whole Unit
Power
Power input
12V DC Jack, Supplied 5A/12V 60W PSU (100-240V/AC)
Environmental Characteristics
Operating Temperature 0 to 40°C
Storage Temperature -20 to 60°C
Operating Humidity 10 to 90% (Non-Condensing)
Storage Humidity 10 to 90% (Non-Condensing)
System Configuration
Processor
Intel J6412 (2.0GHz)
Intel i3-N305 (1.8GHz)
Intel N95 (6M Cache, Upto 3.4GHz)
Intel i3-N305 (6M Cache, Upto 3.8GHz)
Intel N95 (6M Cache, Upto 3.4GHz)
Intel i3-N305 (6M Cache, Upto 3.8GHz)
Hard Drive
1x Removable M.2 PCIe 2280 SSD128GB SSD
1x Removable M.2 PCIe 2242 SSD128GB SSD
Memory
2x DDR4 slots, 8GB DDR4(Max. 32GB)
1x DDR4 slot, 8GB DDR4(Max. 16GB)
TPM
Intel PTT / TPM 2.0
Display
Size/Resolution
15" TFT LCD (LED Backlight)
1024 x 768 pixels (4:3)
15.6" TFT LCD (LED Backlight)
1980 x 1080 pixels (16:9)
18.5" TFT LCD (LED Backlight)
1980 x 1080 pixels (16:9)
Brightness
350 cd/m2
300 cd/m2
Touch Panel
Projected capacitive touch (multi-touch)
Interfaces
LAN
1x RJ45 10/100/1000 Mbps
Video Out
1x HDMI
USB
4x USB 2.0, 2x USB 3.0
5x USB 2.0, 2x USB 3.0
Serial
3x RJ50 (DB9 adaptor included, RS232, DC 5V/12/V - Jumper Selectable)
Cash Drawer
1x RJ12 24V (12V selectable by Jumper)
Audio
1x 3.5mm Line in/Mic Out Combined Jack, 2x2W Speaker
WLAN (Option)
-
802.11 a/b/g/n/ac
Bluetooth (Option)
-
Bluetooth 4.1
Software
Operating System
Windows 10 IoT / Windows 10 Pro / Windows 11 IoT / Windows 11 Pro
Model Options
Barcode Reader
Tilt angle adjustable 1D / 2D barcode scanner
Integrated Card Reader
3-track MSR and/or RFID (125 kHz / 13.56 MHz)
Customer Facing Display
2-Line Vacuum Fluorescent Display
9-7"TFT LCD
15" TFT LCD
2-Line Vacuum Fluorescent Display
11.6" TFT LCD
15.6" TFT LCD
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] Senor K Series (does not include Operating System)
[B]
Memory - SSD
SSDUPGRADE-240 SSD Upgrade to from 128GB to 240GB $165.00 A
SSDUPGRADE-480 SSD Upgrade to from 128GB to 480GB $330.00 A
SSDUPGRADE-960 SSD Upgrade to from 128GB to 960GB $660.00 A
Wireless
WIFI-BT-MOD
[C] Power Supply
PS12RS5000
[D] Operating System
WIN10IOT
WIN11IOT
