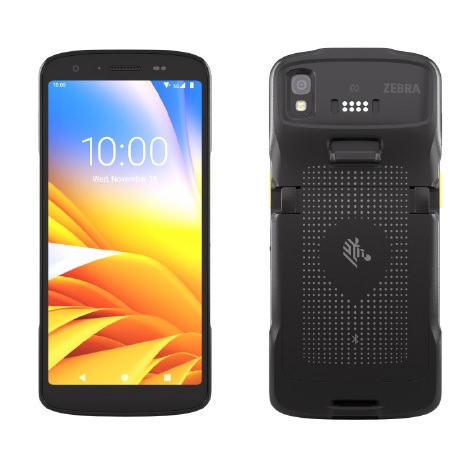

Zebra - TC22/27 Series
Enterprise Digital Assistant
 |
The Zebra TC22 and TC27 Mobile Computers are the ultimate cost-effective tool for small businesses — with big business features. Your small or mid-size business competes with industry giants that use the latest enterprise mobile devices to give workers a competitive edge — but the smartphones in your budget don’t offer the features you need. Introducing the equalizer — the TC22/TC27 mobile computers. With this third generation of the highly successful TC2x Series, the TC22 and TC27 deliver the best of all worlds — smartphone styling and pricing,with big business features that boost productivity and customer service quality. This compact, powerful device offers a large 6 in. display, optional 5G, Wi-Fi 6E, integrated barcode reader, support for tap-to-pay and other contactless transactions and more. This durable device is built to outlast consumer phones, providing a better return on investment. And Zebra’s portfolio of services can help you get and keep your devices up and running at peak performance. Get the boost you need to compete with any size business with the TC22 and TC27 — the smartphone style that workers want, the features your business needs and all at a price you can afford. The smartphone-style device that’s made for work. Power all your apps — simultaneously. Get superior performance on all your apps with a next generation processor that delivers twice the performance of the prior generation, plus class-leading memory and data storage options. When it comes to wireless, the TC22 and TC27 offer it all. 5G with the TC27 and Wi-Fi 6/6E2 deliver wired speeds, providing workers with better voice and data performance inside and outside of your facility. Support for private 5G and CBRS3 private LTE networks enables cost-effectivewireless connectivity in the largest indoor and outdoor facilities. Bluetooth 5.2 delivers better audio quality while consuming less power, and adds unique features that enable effective ways tocommunicate and collaborate.
Features:
|
|---|
Specifications
| Physical Characteristics | |
|---|---|
| Length | 165mm |
| Width | 76.3mm |
| Depth Standard Battery Extended Battery | 12.5mm |
| Weight Standard Battery | 236g |
| Environmental Characteristics | |
| Operating Temperature | -10ºC to +50ºC |
| Storage Temperature | -30ºC to +70ºC |
| Relative Humidity | 5% to 95% (non-condensing) |
| Drop Spec | 1.5m to concrete |
| Tumble Spec | 500 500mm tumbles 500 1m tumbles with protective boot |
| Sealing | IP65 and IP68 Options |
| Software | |
| Operating System | Support to Android 16 |
| Hardware | |
| Microprocessor | Qualcomm 5430 hex-core, 2.1 GHz |
| RAM | 6GB or 8GB RAM |
| Flash ROM | 64GB or 128GB |
| Expansion Slot | User accessible MicroSD up to 2TB TC27 only: 1 Nano SIM and 1 eSIM |
| Sensors | Light Sensor, Motion Sensor, Proximity Sensor, Magnetometer, Pressure Sensor |
| Power | |
| Battery Type | Rechargeable Lithium Ion HD Battery |
| Battery capacity Standard Battery Extended Battery BLE Battery | 3800 mAh 5200 3800 mAh |
| Display | |
| Size | 6.0" (152mm), High Definition (1080 x 2160) |
| TouchScreen | Capacitive Touch Panel; multi-touch, with Gorilla Glass Protection |
| Communications/Interfaces | |
| Buttons | Dual dedicated scan buttons; programmable button for PTT or other use; volume up/down; power |
| Barcode Scanner | SE47100 1D/2D Imager SE55 1D/2D Advanced Range Imager |
| Camera | Rear 16MP Autofocus with LED Flash and Optional 5MP Front |
| WWAN (TC27 Only) | 5G |
| WLAN | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax 2x2 MUMIMO, Wi-Fi 6E (802.11ax), Wi-Fi certified Wi-Fi 6 Certified, Dual Band Simultaneous IPv4, IPv6 |
| GPS | TC27 Only: GPS, GLONASS, Galileo, Beidou, QZSS, Dual-Band GNSS — concurrent L1/G1/E1/B1 (GPS/QZSS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS/QZSS, GAL, BeiDou) a-GPS supports XTRA |
| Bluetooth | Class 2, Bluetooth v5.2 Bluetooth Low Energy (BLE) |
| NFC | ISO 14443 Type A and B FeliCa and ISO 15693 cards Card Emulation via Host Contactless payment support ECP1.0 and ECP2.0 polling support Apple VAS certified |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Zebra TC22 - Wifi Only | ||||
| WLMT0-T22B8ABD8-A6 | ZEBRA PDT TC22 2D-SE4710 8/128 WIFI-6 STD AD/GMS | $1,958.00 | C3 | |
| WLMT0-T22B8ABC8-A6 | ZEBRA PDT TC22 2D-SE4710 8/128 WIFI-6 STD AD/GMS | $1,881.00 | C3 | |
| WLMT0-T22B6CBE2-A6 | ZEBRA PDT TC22 2D-SE55 6/64 WIFI-6 EXT AD/GMS | $1,881.00 | C3 | |
| WLMT0-T22B6CBC2-A6 | ZEBRA PDT TC22 2D-SE55 6/64 WIFI-6 STD AD/GMS | $1,793.00 | C3 | |
| WLMT0-T22B8CBD8-A6 | ZEBRA PDT TC22 2D-SE55 8/128 WIFI-6 STD AD/GMS | $2,189.00 | C3 | |
| WLMT0-T22B6ABC2-A6 | ZEBRA PDT TC22 2D-SE4710 6/64 WIFI-6 STD AD/GMS | $1,562.00 | C3 | |
| WLMT0-T22B6ABE2-A6 | ZEBRA PDT TC22 2D-SE4710 6/64 WIFI-6 EXT AD/GMS | $1,639.00 | C3 | |
| [B] Zebra TC27 - Wifi and 4G/LTE | ||||
| WCMTB-T27B8ABE8-A6 | ZEBRA PDT TC27 2D-SE4710 8/128 5G EXT AD/GMS | $1,881.00 | C1 | |
| WCMTB-T27B8ABC8-A6 | ZEBRA PDT TC27 2D-SE4710 8/128 5G STD AD/GMS | $1,804.00 | C1 | |
| WCMTB-T27B8ABD8-A6 | ZEBRA PDT TC27 2D-SE4710 8/128 5G STD/BLE AD/GMS | $1,870.00 | C1 | |
| WCMTB-T27B6CBC2-A6 | ZEBRA PDT TC27 2D-SE55 6/64 5G STD AD/GMS | $1,727.00 | C1 | |
| WCMTB-T27B8CBD8-A6 | ZEBRA PDT TC27 2D-SE55 8/128 5G STD AD/GMS | $2,079.00 | C1 | |
| WCMTB-T27B6ABC2-A6 | ZEBRA PDT TC27 2D-SE4710 6/64 5G STD AD/GMS | $1,518.00 | C1 | |
| WCMTB-T27B6ABE2-A6 | ZEBRA PDT TC27 2D-SE4710 6/64 5G EXT AD/GMS | $1,595.00 | C1 | |
| [C] Charging Options | ||||
| Single Dock (Requires Power Supply, DC Line Cord and AUS Power Cable, Plus USB cable for PC data connection) | ||||
| CRD-TC2L-SE1ET-01 | ZEBRA DOCK CHARGE/USB 1-BAY TC22/TC27 | $572.00 | C2 | |
| CBL-DC-388A1-01 | ZEBRA DC LINE CORD FOR SINGLE SLOT CRADLE | $15.40 | C2 | |
| PWR-BGA12V50W0WW | PS12RS416 | ZEBRA PSU 12V/4.16A 50W | $79.20 | C2 |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| 25-124330-01R | ZEBRA CABLE DATA MICRO USB | $17.60 | C3 | |
| Single Charge Only Dock (Requires Power Supply and AUS Power Cable) | ||||
| CRD-TC2L-BS1CO-01 | ZEBRA DOCK CHARGE ONLY 1-BAY TC22/TC27 | $209.00 | C2 | |
| PWR-WUA5V12W0AU | PS5RS2500W | ZEBRA PSU AC 2.5A 5V TC51/TC56/TC57 WITH AU PLUG | $39.60 | C2 |
| CBL-TC5X-USBC2A-01 | ZEBRA CABLE DATA/POWER USB-C TO USB-A 1M | $16.50 | C2 | |
| (Charge Cable) | ||||
| Single Charge Only Dock with spare battery charging (Requires Power Supply and AUS Power Cable) | ||||
| CRD-TC2L-BS11B-01 | ZEBRA DOCK CHARGE/BATTERY 1-BAY TC22/TC27 | $627.00 | C2 | |
| CBL-DC-388A1-01 | ZEBRA DC LINE CORD FOR SINGLE SLOT CRADLE | $15.40 | C2 | |
| PWR-BGA12V50W0WW | PS12RS416 | ZEBRA PSU 12V/4.16A 50W | $79.20 | C2 |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| MultiDock Options: (Requires Power Supply, DC Line Cord and AUS Power Cable) | ||||
| CRD-TC2L-SE5ET-01 | ZEBRA MULTIDOCK CHARGE/ETH 5-BAY TC22/TC27 | $1,760.00 | C2 | |
| CRD-TC2L-BS5CO-01 | ZEBRA MULTIDOCK CHARGE ONLY 5-BAY TC22/TC27 | $1,177.00 | C2 | |
| PWR-BGA12V108W0WW | PS12RS9000 | ZEBRA PSU AC 12V/9A 108W | $170.50 | C2 |
| CBL-DC-381A1-01 | ZEBRA CABLE POWER DC PWR-BGA12V1080WW MULTIDOCK | $42.90 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| Battery Charger (Requires Power Supply, DC Line Cord and AUS Power Cable) | ||||
| SAC-TC2L-4SCHG-01 | ZEBRA MULTIDOCK BATTERY 4-BAY TC22/TC27 | $682.00 | C2 | |
| To power a single Charger: | ||||
| PWR-BGA12V50W0WW | PS12RS416 | ZEBRA PSU 12V/4.16A 50W | $79.20 | C2 |
| CBL-DC-388A1-01 | ZEBRA DC LINE CORD FOR SINGLE SLOT CRADLE | $15.40 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| To power a two Chargers: | ||||
| PWR-BGA12V108W0WW | PS12RS9000 | ZEBRA PSU AC 12V/9A 108W | $170.50 | C2 |
| CBL-DC523A1-01) | ||||
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| [D] Battery | ||||
| BTRY-TC2L-2XMAXX-01 | ZEBRA BATTERY STANDARD 3800MAH TC22/TC27 | $146.30 | C3 | |
| BTRY-TC2L-2XMAXB-01 | ZEBRA BATTERY STANDARD BLE 3800MAH TC22/TC27 | $198.00 | C3 | |
| BTRY-TC2L-3XMAXX-01 | ZEBRA BATTERY 5200MAH TC22/TC27 | $220.00 | C3 | |
| [E] Accessories | ||||
| USB-C cable for Direct Connect Charging/Communication: | ||||
| CBL-TC5X-USBC2A-01 | ZEBRA CABLE DATA/POWER USB-C TO USB-A 1M | $16.50 | C2 | |
| Trigger Handle. For using the TC22/27 in gun style format. Requires Protective Boot: | ||||
| TRG-TC2L-SNP1-01 | ZEBRA SCAN HANDLE TC22/TC27 (REQ BOOT) | $429.00 | C2 | |
| 50-12500-066 | ZEBRA WRIST STRAP LANYARD | $6.60 | C2 | |
| Protective Boot: | ||||
| SG-TC2L-BOOT-01 | ZEBRA PROTECTIVE BOOT TC22/TC27 | $99.00 | C2 | |
| Hand Strap (Not compatible with protective boot): | ||||
| SG-TC2L-HSTRP1-01 | ZEBRA HANDSTRAP TC22/TC27 | $55.00 | C2 | |
| SG-STYLUS-TCX-MTL-03 | ZEBRA STYLUS PASSIVE MICRO-KNIT HYBR FIBER TIP 3PK | $39.60 | C2 | |
| SG-TC5NGTC7NG-TETHR-03 | ZEBRA TETHER FOR PASSIVE STYLUS 3/PK | $55.00 | C2 | |
| SG-TC2L-SCRNPT1-01 | ZEBRA SCREEN PROTECTOR TEMPERED GLASS TC22/TC27 | $33.00 | C2 | |
| Soft Holster | ||||
| SG-TC2L-HLSTR1-01 | ZEBRA HOLSTER TC22/TC27 | $121.00 | C2 | |
| Arm Mount (Velcro) Options | ||||
| SG-TC2L-ARMNT-01 | ||||
| SG-TC2L-ARMNT-02 | ZEBRA TC22/TC27 ROTATABLE ARM MNT W/LARGE STRAPS | $231.00 | C3 | |
| SG-TC2L-WMADP1-02 | ZEBRA ARM MOUNT (BOA) EXTENDED LENGTH STRAP | $330.00 | C3 | |
| SG-WT4027050-01R | ||||
| SG-TC2L-ARMSTRAP-01 | ||||
| SG-TC2L-ARMSTRAP-02 | ||||
| SG-TC2L-CMPD-01 | ZEBRA COMFORT PAD FOR ARM MOUNTS | $66.00 | C3 | |
| SG-NGWT-WSTPST-01 | ZEBRA WRIST STRAP SMALL/MEDIUM WT6000 | $122.10 | C2 | |
| SG-NGWT-WSTPLN-01 | ZEBRA WRIST STRAP MEDIUM/LARGE WT6000 | $122.10 | C2 | |
| SG-NGWT-WSTPXL-01 | ZEBRA WRIST STRAP EXTRA LARGE WT6000 | $154.00 | C2 | |
| For Vehicle Cradles and Voice Accessories contact UMD for Assistance | ||||
| [F] Extended Maintenance | ||||
| Z1AE-TC22XX-3C00 | ZEBRA ONECARE ESSENTIAL TC22XX 3YR COMP | $473.00 | V | |
| Z1AE-TC22XX-5C00 | ZEBRA ONECARE ESSENTIAL TC22XX 5YR COMP | $781.00 | V | |
| Z1AE-TC27XX-3C00 | ZEBRA ONECARE ESSENTIAL TC27XX 3YR COMP | $473.00 | V | |
| Z1AE-TC27XX-5C00 | ZEBRA ONECARE ESSENTIAL TC27XX 5YR COMP | $781.00 | V | |
